Elite Flag Hinge

The Elite Flag Door Hinge, ergonomically designed to suit PVC-U door profiles and fully 3D adjustable. Patent pending “Anti-lift” security feature, with a 2.5mm steel carriage plate offering enhanced performance and security. Along with the “Elite” furniture signature dimple on the cover for a suited range.

  • Can achieve PAS24 accreditation as part of a complete door assembly.

  • Manufactured in Steel and Stainless Steel, Aluminium and Zinc alloys.

  • Steel / Stainless Steel sash plate for superior strength

  • Patent pending Unique Anti-lift security feature.

  • 3D Independent vertical, lateral and compression adjustment.

  • Non-handed.

  • 10 year mechanical guarantee.

  • Available in 19mm and 22mm height options, variety of hinge packers available.

  • Available in PVD Gold, Polished Chrome, Smokey Chrome, White, Black, Silver, Anthracite, Brown, Champagne
    Gold and Oak. (All UV stabilised).

Dimensional Drawings 19mm

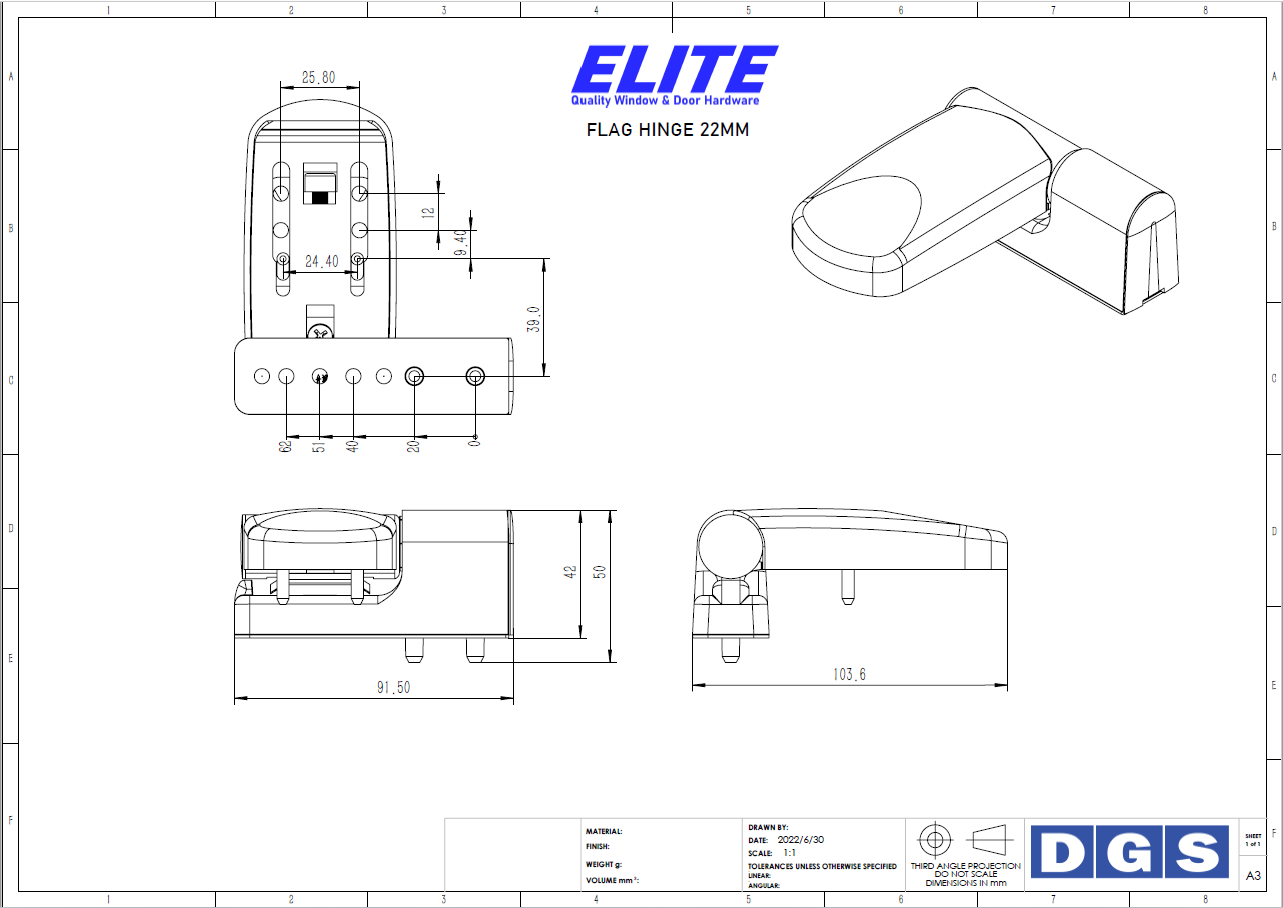

Dimensional Drawings 22mm

Testing

  • Corrosion tested to BS EN 1670*

  • Grade 5 painted finishes

  • Grade 4 plated finishes

  • Cycle tested to 100,000 cycles, conforms to BS EN1191

  • PAS24 compatible when tested as part of a door assembly

3D Adjustments

  • Vertical + 6mm (+/-3mm)

  • Compression (+/- 3mm)

  • Lateral (+/-6mm)

Flag Hinge - Gold
Flag Hinge - Brown
Flag Hinge - Smokey Chrome
Flag Hinge - Anthracite Grey
Flag Hinge - White
Flag Hinge - Chrome
Flag Hinge - Oak
Flag Hinge - Silver

Ordering Information 19mm

WordPress Table

Ordering Information 22mm

WordPress Table

Additional Information

Maximum weight carrying capacity

  • Approximately 1m wide x 2.2m high

  • 2 hinges 80kg – 3 hinges 120kg

Material Specifications

  • Zinc alloy

  • Aluminum alloy

  • Steel

  • Stainless Steel Grade 430

  • Plastic – GF Nylon, UV Stabilised

  • ABS and Acetal

Packaging

  • Box qty – 1

  • Carton qty – 24
