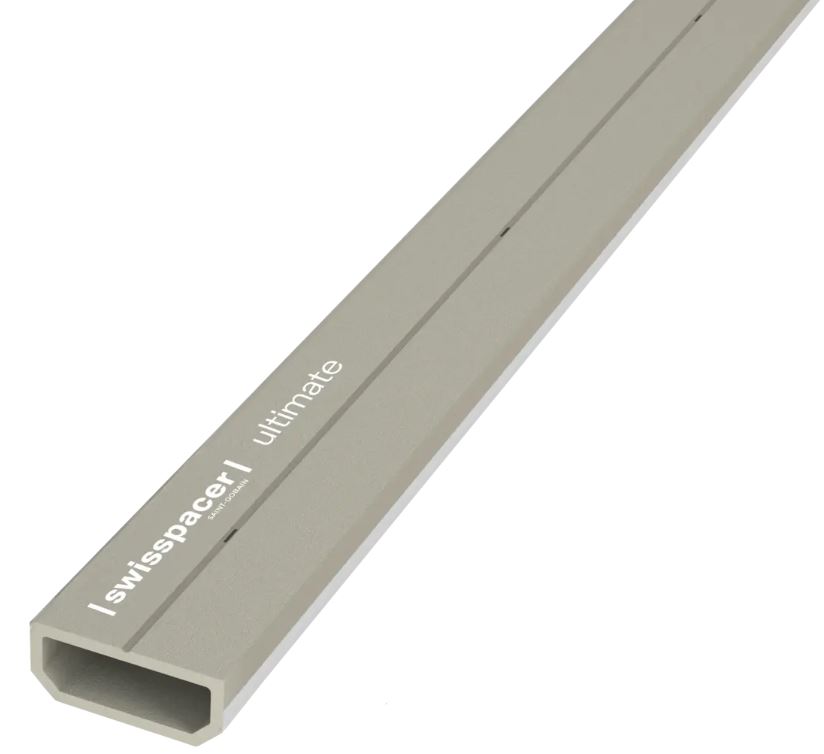

Swisspacer Ultimate Warm Edge Spacer System

Swisspacer Ultimate ensures impressively low thermal conductivity at the edge of the insulating glass unit and, according to internationally acknowledged guidelines, is one of the best warm edge spacer bars in the world.

This ensures correspondingly low Uw values for windows and facades, together with energy savings for users.

The warm edge avoids the formation of condensation and mitigates the risk of mould, thus contributing to much improved living comfort.

Swisspacer also saves CO2 and therefore supports the sustainable construction of windows and facades.

According to ift guidelines WA-17/1 and WA-08/3, Swisspacer Ultimate is one of the best warm edge spacer bars in the world.
Swisspacer Ultimate saves considerable energy costs and thus also a significant amount of CO2.
Double glazing insulating glass unit: 4-16-4 (Ug = 1,1 W/m2K).
Triple glazing insulating glass unit: 4-12-4-12-4 (Ug = 0,7 W/m2K)

We also offer Swisspacer Ultimate | Nyxé – Impressing with its inner values: 33% recycled content, the proven high performance of Swisspacer Ultimate – and a significant improvement in its environmental footprint with reduction of CO₂ footprint by around 20%.

Swisspacer Ultimate Ordering Information

Size	Code	Box Qty 5.1m Length
8mm	SWISSU/08**	288 Lengths (1468.8m)
10mm	SWISSU/10**	240 Lengths (1224m)
12mm	SWISSU/12**	192 Lengths (979.2m)
14mm	SWISSU/14**	168 Lengths (856.8m)
16mm	SWISSU/16**	144 Lengths (734.4m)
18mm	SWISSU/18**	120 Lengths (612m)
20mm	SWISSU/20**	120 Lengths (612m)
22mm	SWISSU/22BK	96 Lengths (489.6m)
24mm	SWISSU/24BK	96 Lengths (489.6m)
27mm	SWISSU/27BK	72 Lengths (367.2m)

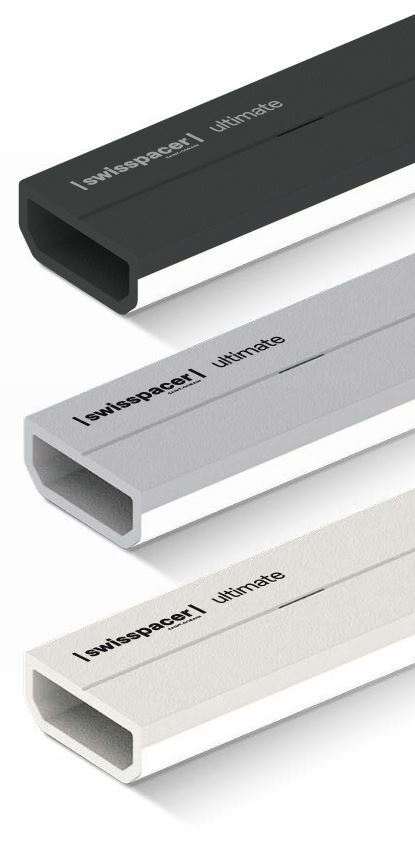

** = Colour choice: Black (BK) Grey (GY) or White (WH)
