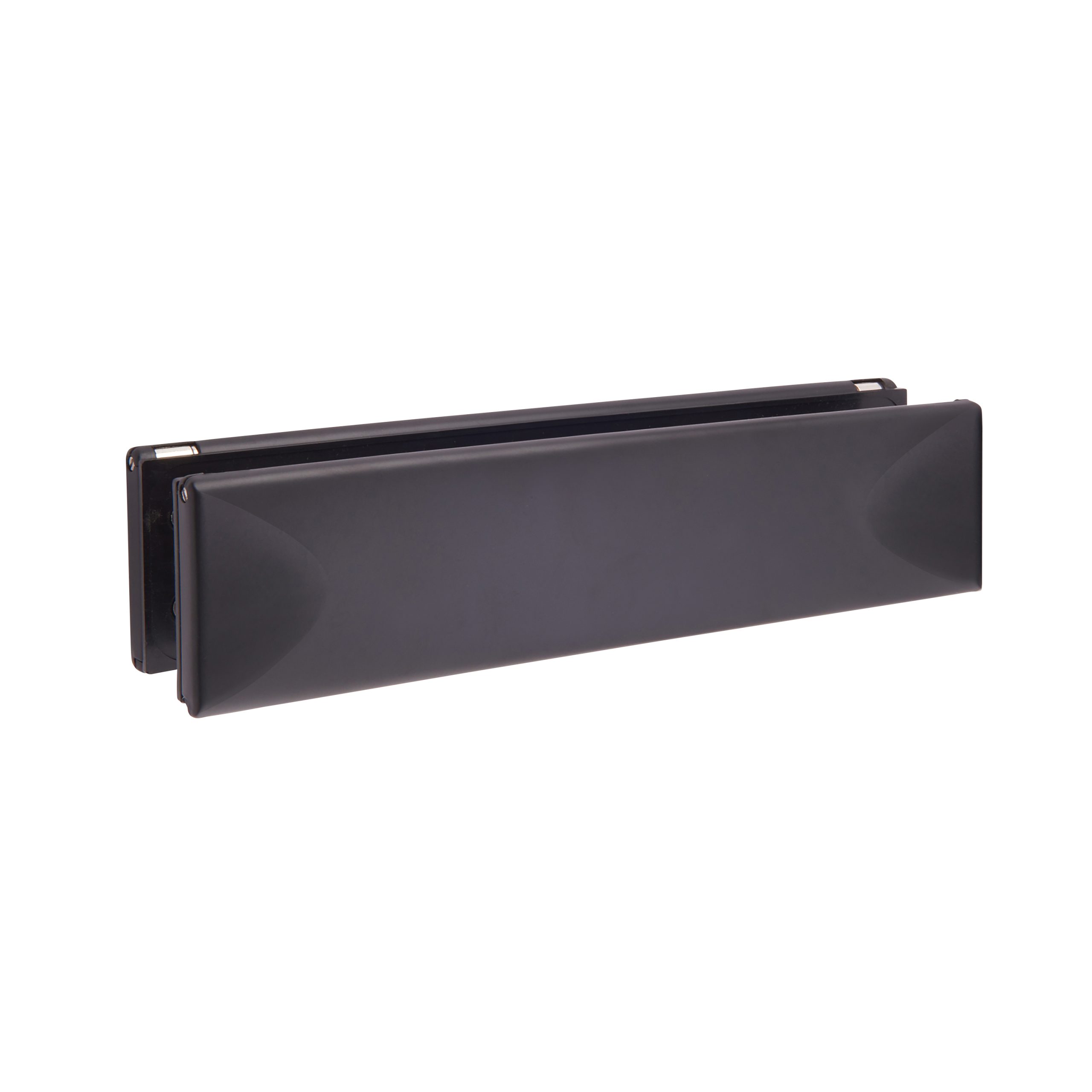

Elite Letterplates

Combines eye catching aesthetics with sturdy construction and a long service life. Designed to complement the Elite range of suited door furniture it will suit UPVC, timber and composite doors in a wide range of thicknesses.

  • Exclusively from DGS.

  • Austenitic 304 Grade stainless-steel.

  • Suitable for Timber, UPVC and Composite doors.

  • 12-inch/300mm wide letterplate has a 10-inch (254mm) aperture to meet standard BS EN13724.

  • Telescopic letterplate sleeve with options to suit 20mm to 40mm doors and 40mm to 80mm doors.

  • One piece stainless-steel letter plate flaps.

  • 180 Degree flap opening with robust zinc pivot points.

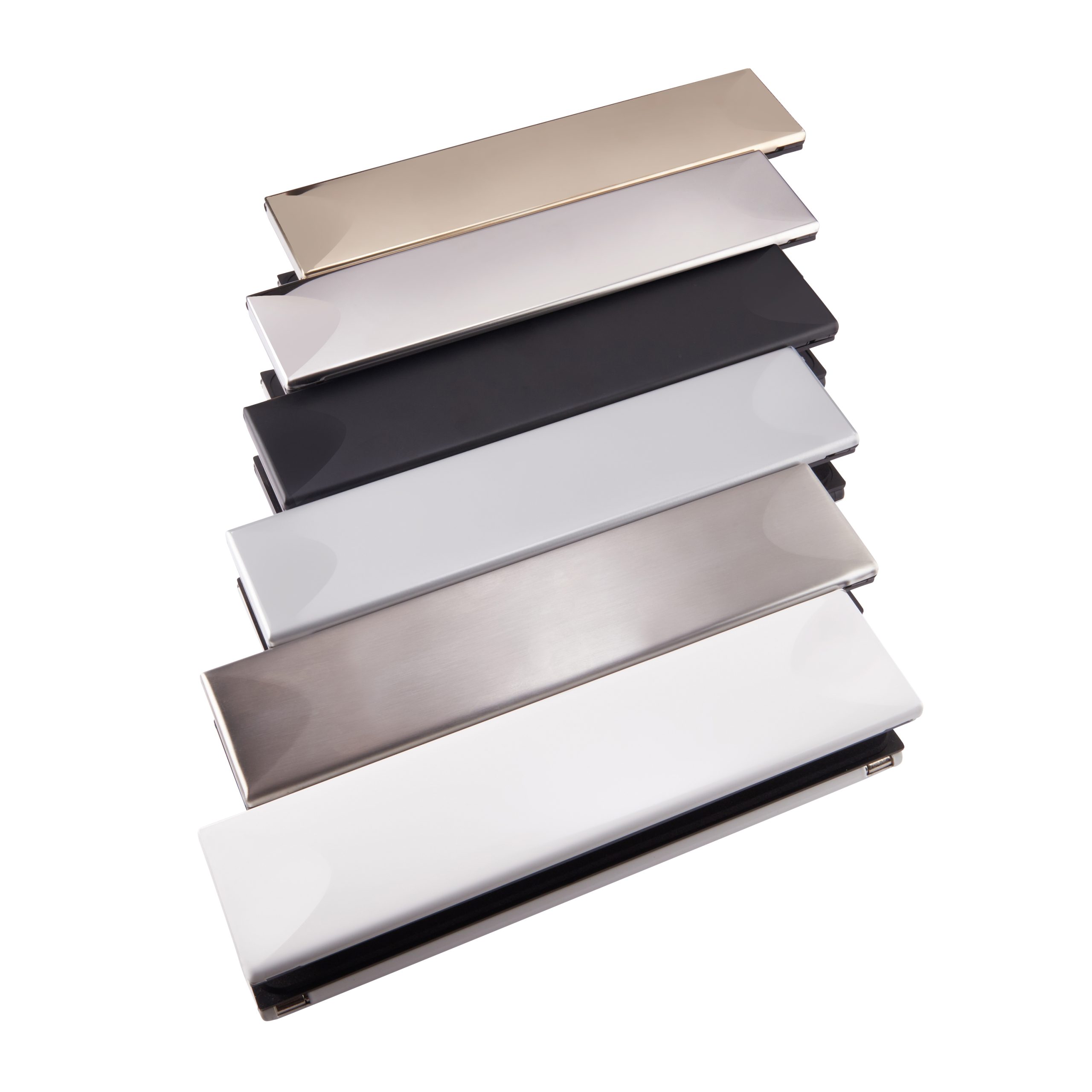

  • Available in 7 popular finishes.

  • Full thermal acoustic barrier and exceptional weather seal.

  • Twin nylon brush seals for improved draft exclusion.

  • Twin stainless steel torsion springs.

  • Letter flap tensioning adjustment.

  • Detachable screw post allowing for a direct face-fit option.

  • Internal screw through fixings.

  • 2 x M5 Steel Fixings.

  • 10 year mechanical guarantee.

Technical Drawing

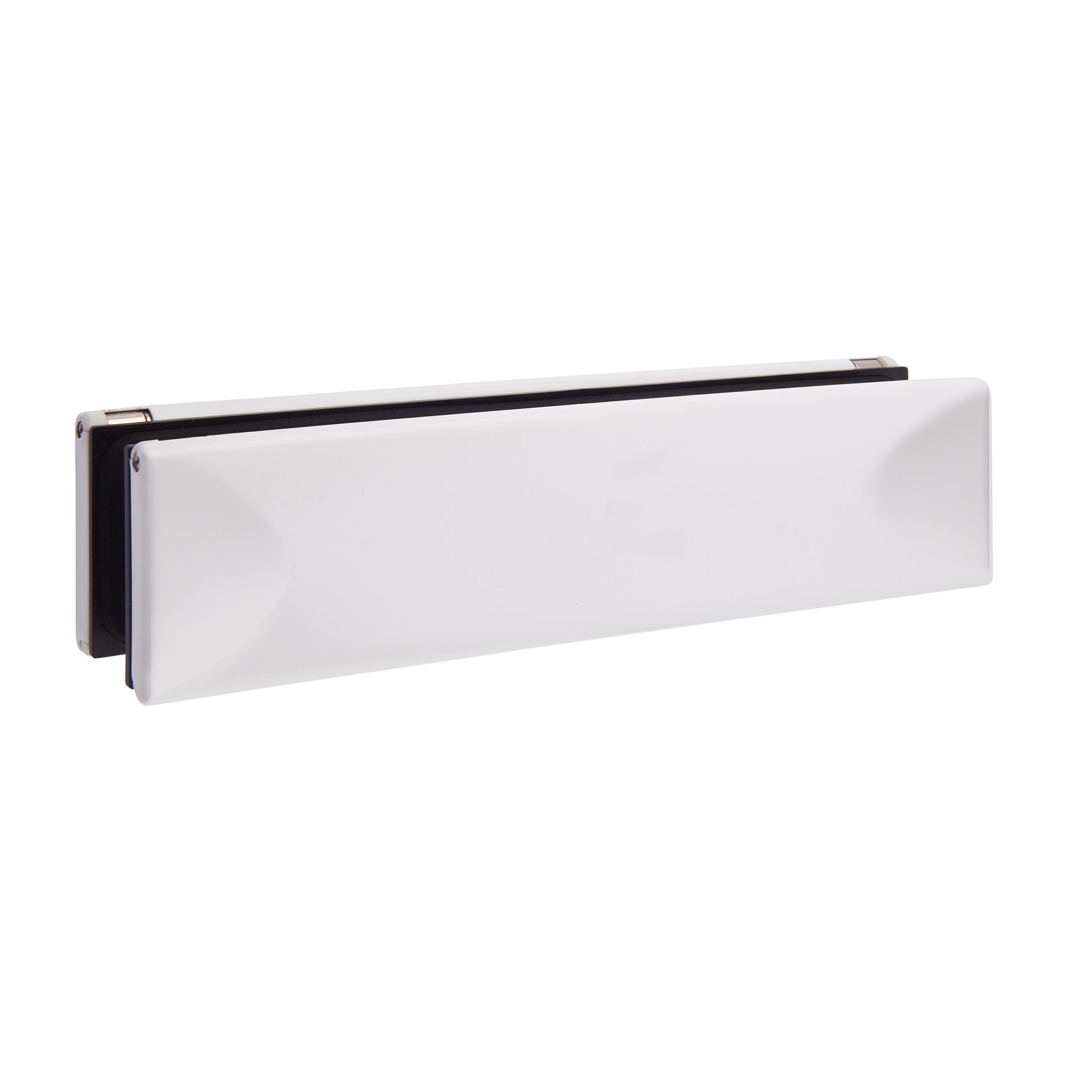

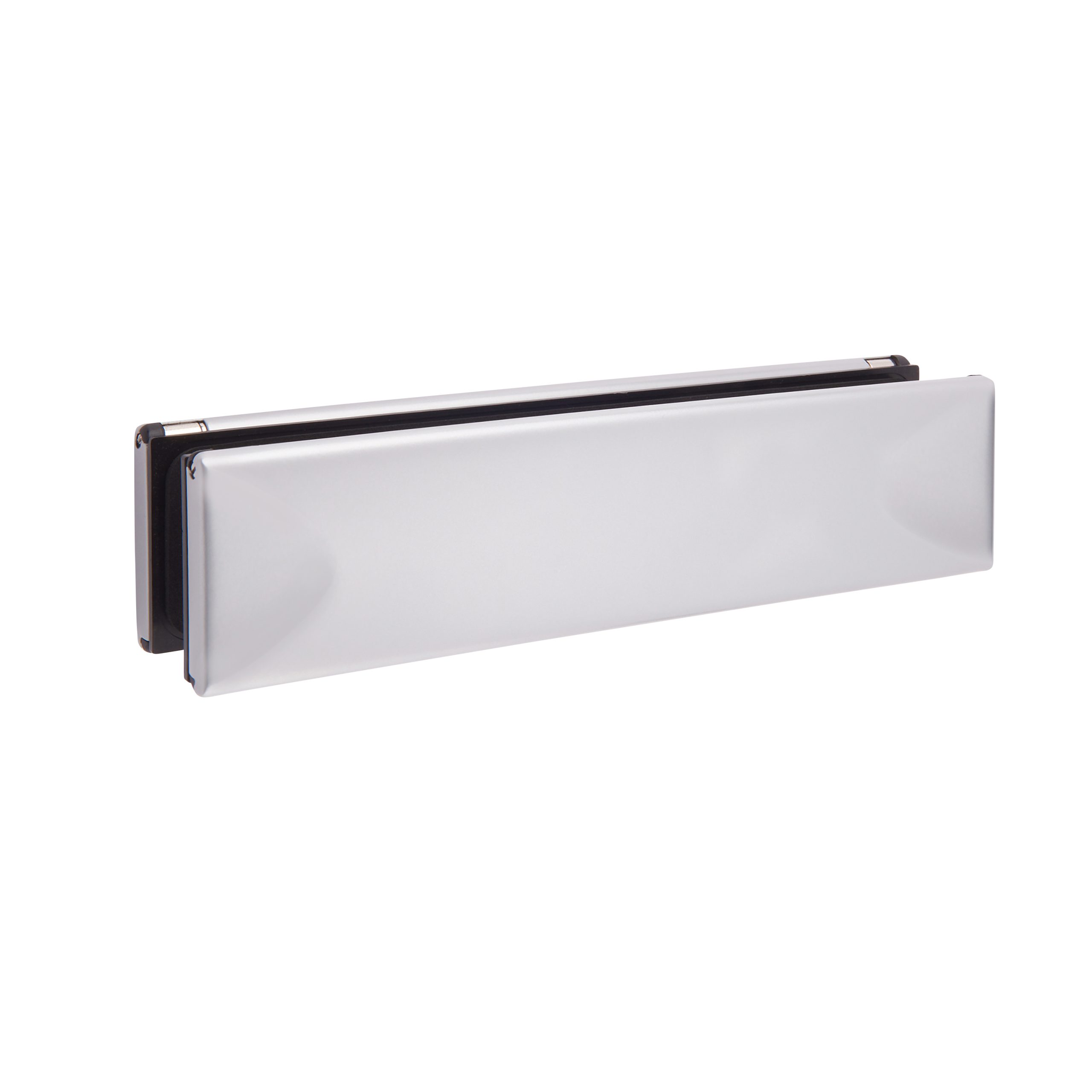

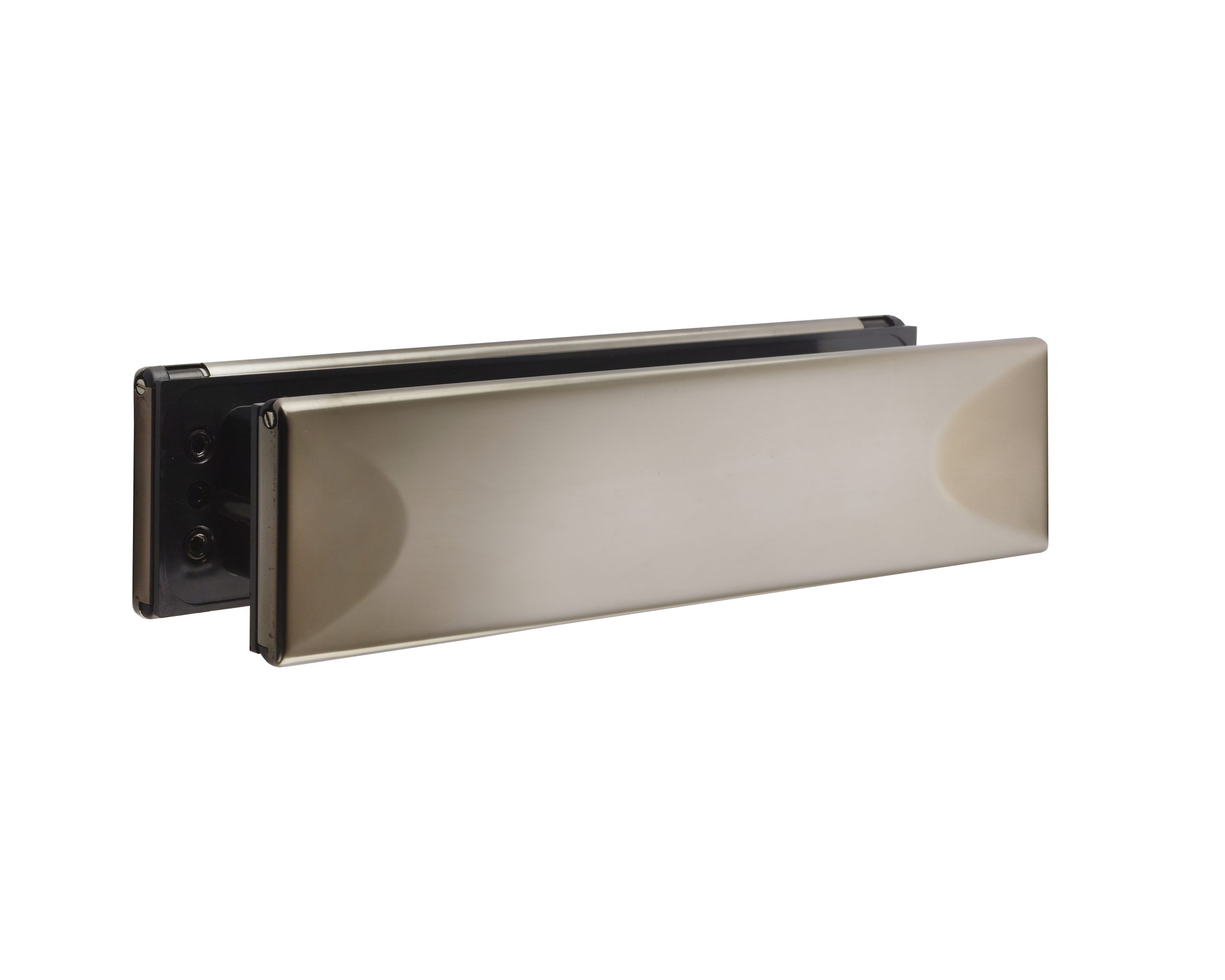

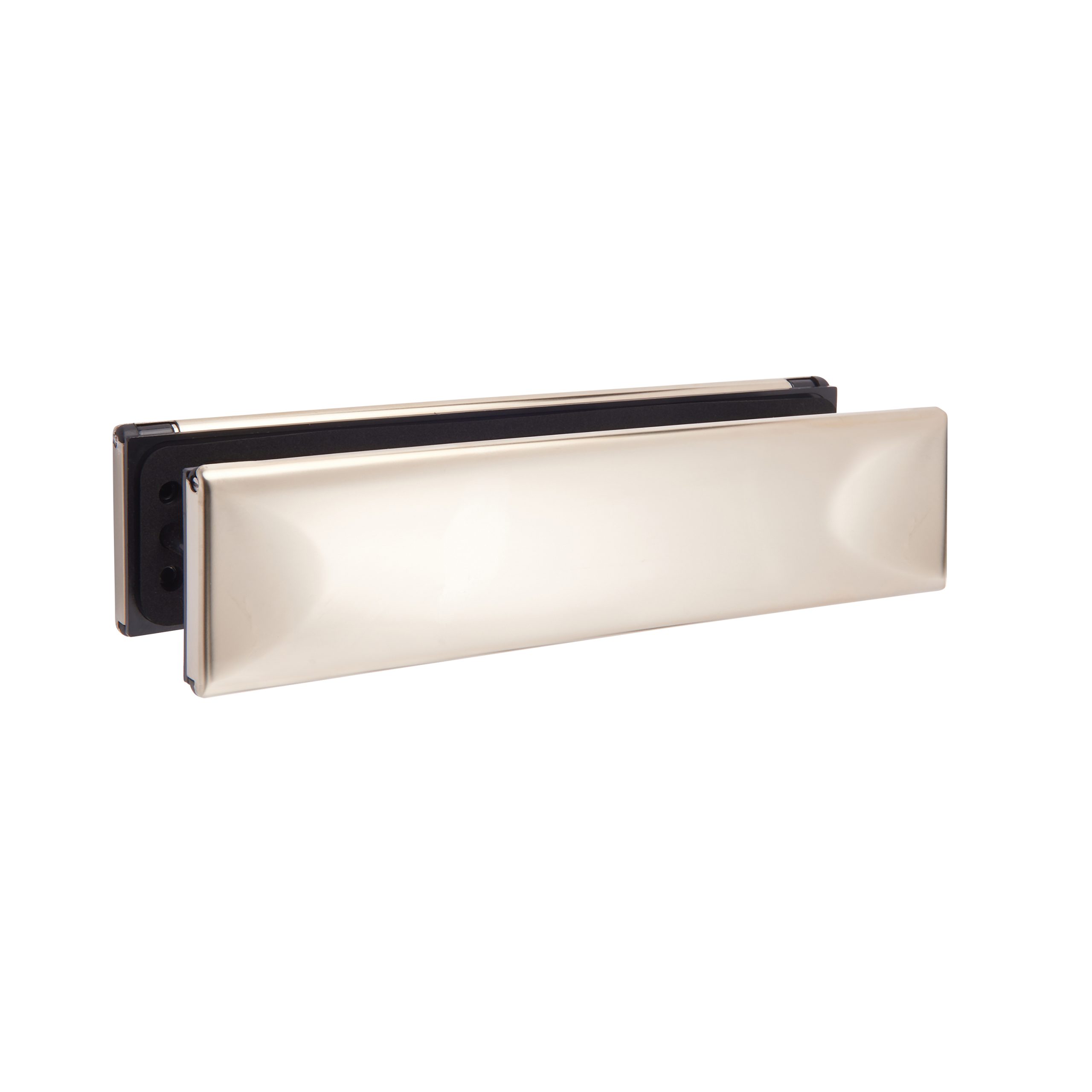

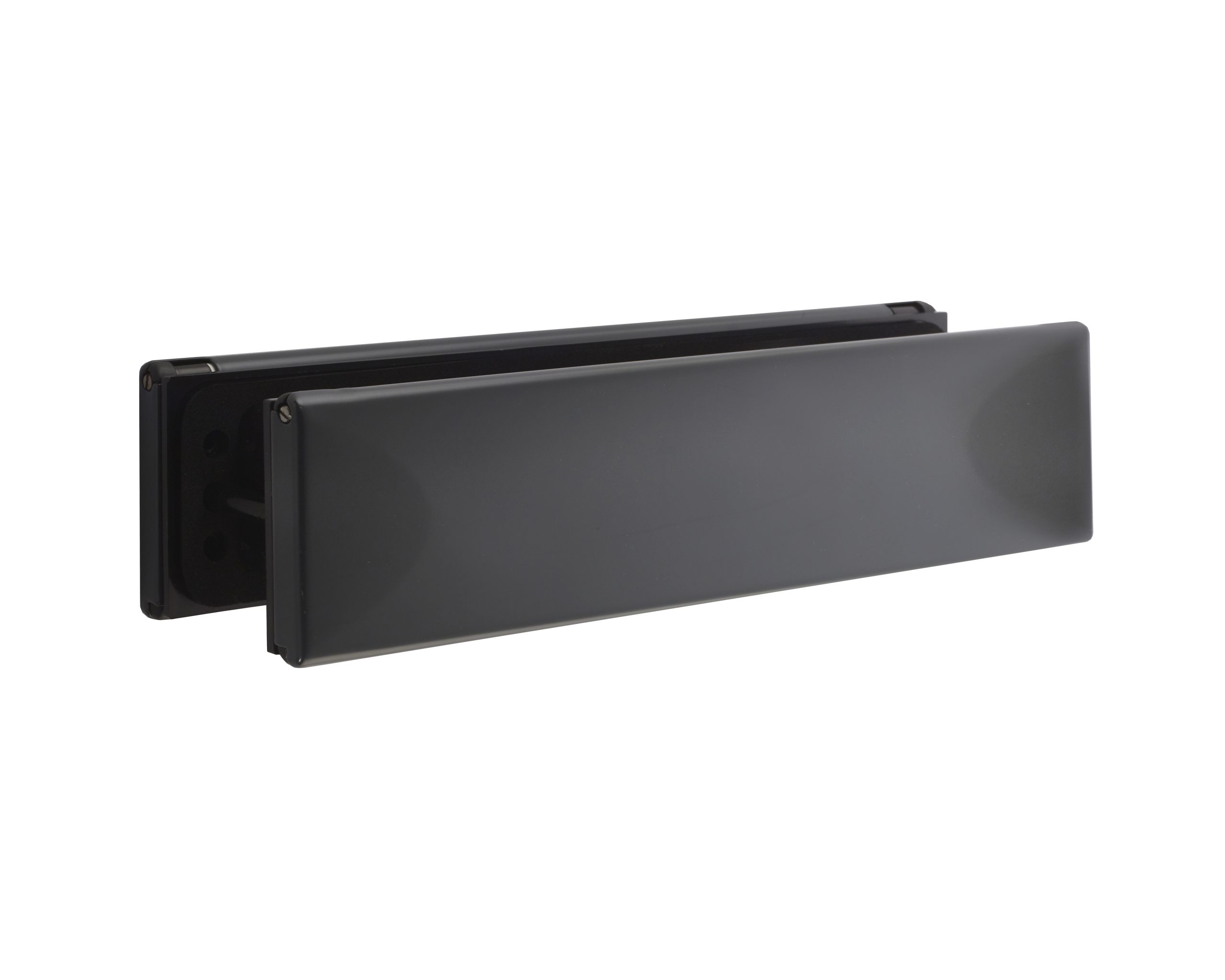

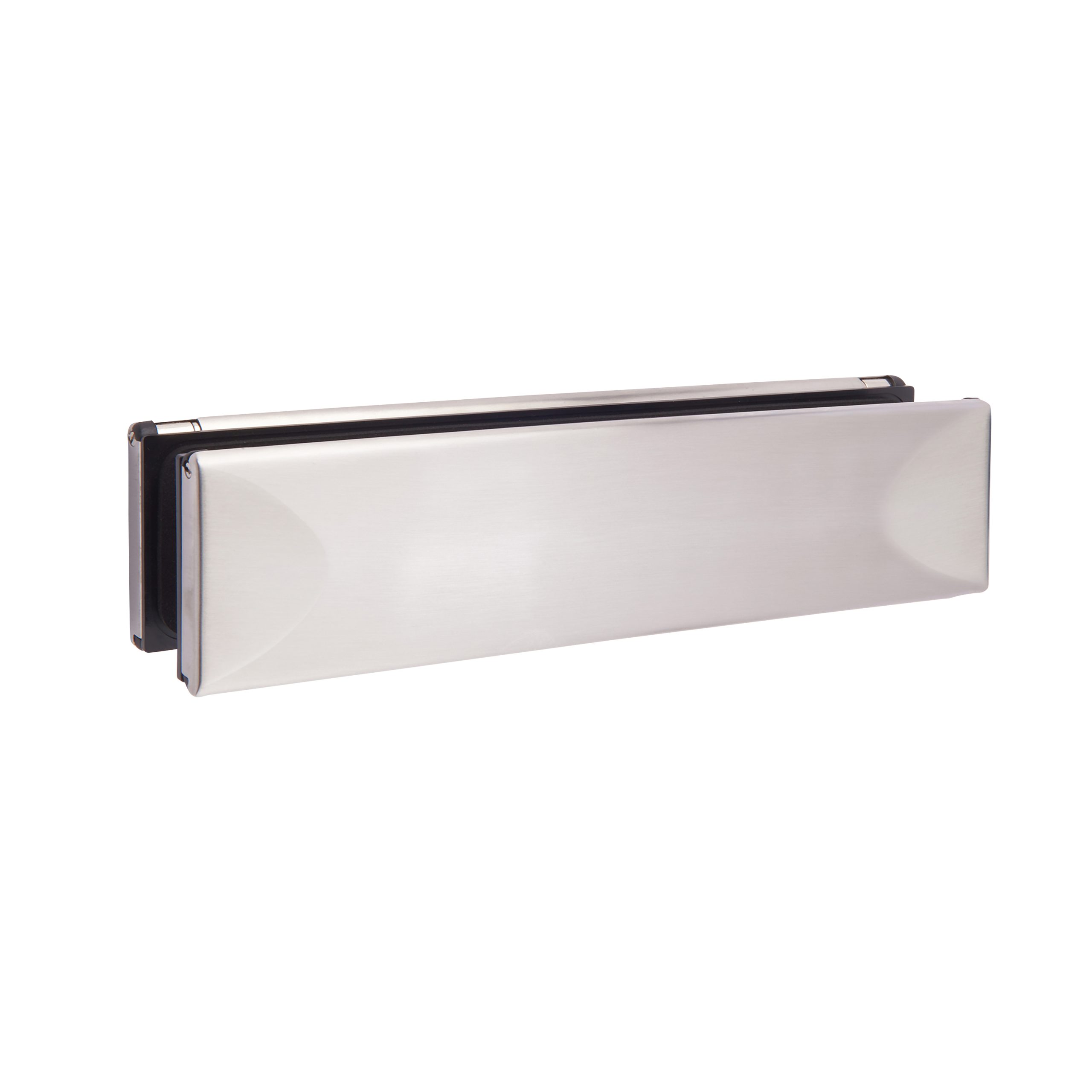

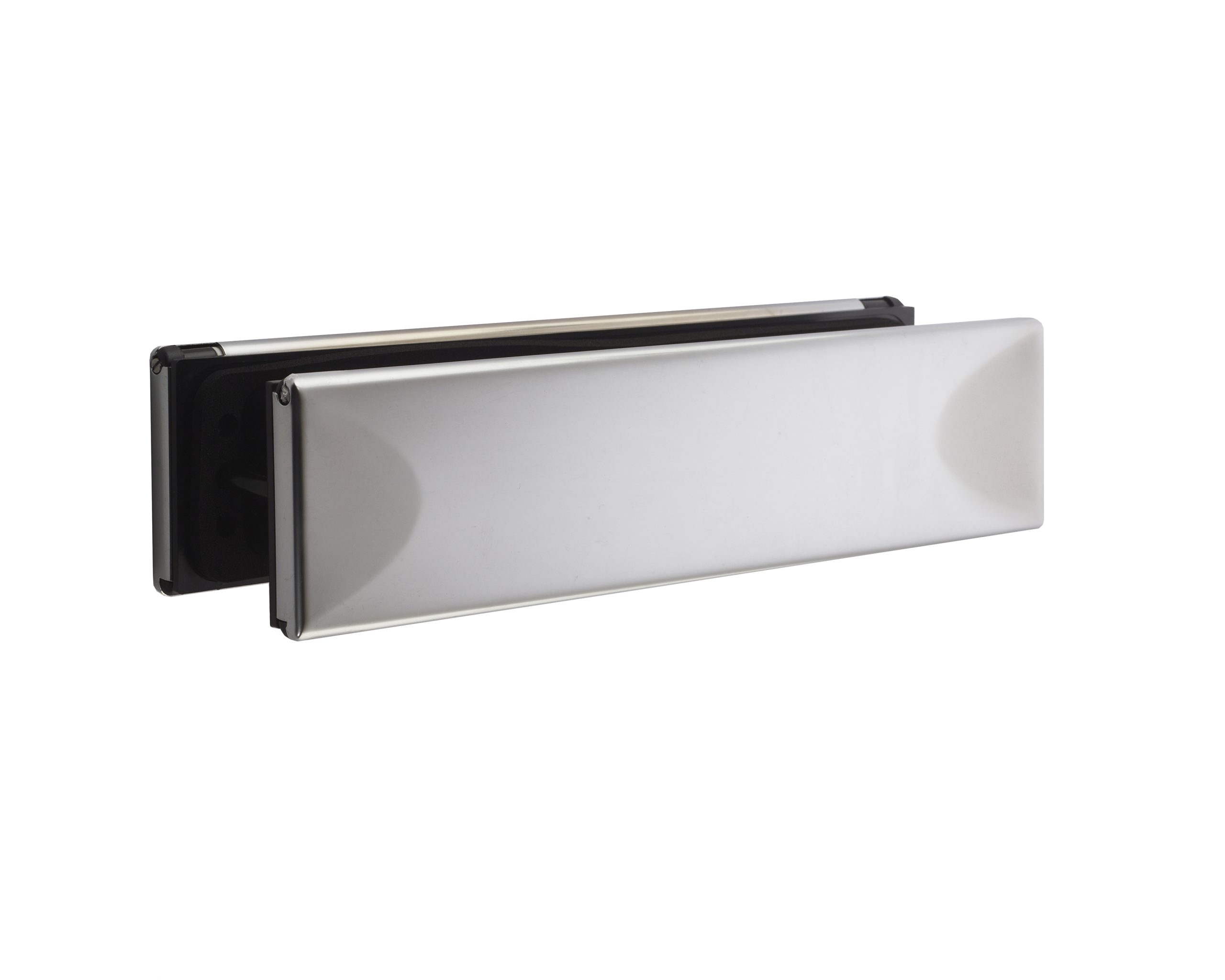

Colour Range:

Download Our Leaflet

Packaging:

  • 10 Letterplates per box, boxed in 1’s.

Ordering Information

WordPress Table

Additional Information

Care Instructions:

To refrain from the highest corrosion resistance, it is necessary to keep the surfaces clean and free from dirty deposits which may attack the finish. This can be done by wiping with a warm clean cloth using either a very mild detergent or soap only, then rinsing with warm clean water and drying with a soft cloth. Under no circumstances should any product be cleaned using solvent based, abrasives or chemical cleaner or wire brushes, scrubbers, wire wool etc. Use of the above will damage the surface and void any product warranty. Avoid contact with sharp objects which may cut into the finish.
